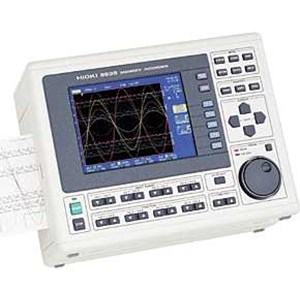

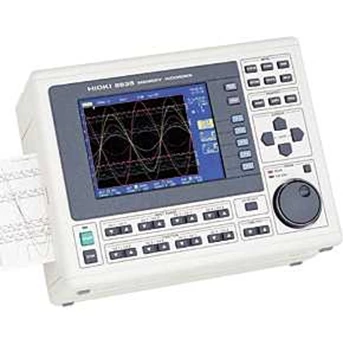

HIOKI 8835-01 MEMORY HiCORDER

High-visibility, Compact, Multi-channeled Field Measurement has never been easier : - Compact 4/8 ch recorder saves space with slim profile - 110mm-width recording paper and a large color display (6.4-inch) - Maximum 8 analog channels and 16 logic - Network Recording Instrument for LAN Basic specifications : Measurement ranges using ANALOG UNIT 8936 /option : 10 mV to 50 V/division, 12 ranges (10 division f.s.), resolution: 1/160 of range AC voltage for possible measurement/ display using the memory function : 280 V rms Frequency characteristic : DC to 400 kHz ±3 dB (used ANALOG UNIT 8936 /option) Time axis at memory function : 100 µs to 5 minutes/division, 20 settings (1 division =100 samples); external sampling (500 kS/s, minimum sampling period 2 µs) Measurement functions : (1)Memory recorder, (2)Recorder, (3)RMS recorder (50/60 Hz or DC only) (Recorder & Memory/FFT functions to be added, Additional functions provided by the FUNCTION UP DISK 9540-01) Number of input channels Analog : (up to 4 channels) + logic (16 channels standard) *using 2 units of ANALOG UNIT 8936 Analog (up to 8 channels) + logic (16 channels standard) *using 2 units of 4ch ANALOG UNIT 8946 Memory capacity : 4 M words/ch (using 1 channel) to 500 k words/ch (using 8 channels) Data storage : FD drive, Type III PC card slot (9727/ 9728/ 9729 PC card, 256MB to 1GB) Interfaces (optional, sold separately) : GP-IB: GP-IB CARD 9558 used, RS-232C: RS-232C CARD 9557 used LAN: 10BASE-T LAN CARD 9578 used Recording and display : 6.4-inch TFT color LCD, 110 mm (4.33 in) × 30 m (98.4 ft), thermal paper roll Other functions : Waveform judgment function*, Waveform processing calculations*, Waveform averaging; memory segmentation waveform parameter processing, logging (numerical printout), X-Y waveform plot, scaling, etc. *(Additional functions provided by the FUNCTION UP DISK 9540-01) Power supply : 100 to 120 V AC or 200 to 240 V AC (50/60 Hz), *10 to 28 V DC using the DC POWER ADAPTER 9439 Dimensions, mass : 285 mm(11.22 in)W × 220 mm(8.66 in)H × 132 mm(5.2 in)D, 4.5 kg (158.73 oz) (base unit only) Accessories : Power cord(1), Recording paper(1 roll), Dust cover(1), Roll paper attachment(2), PC card protector(1), Wave viewer software(1)
